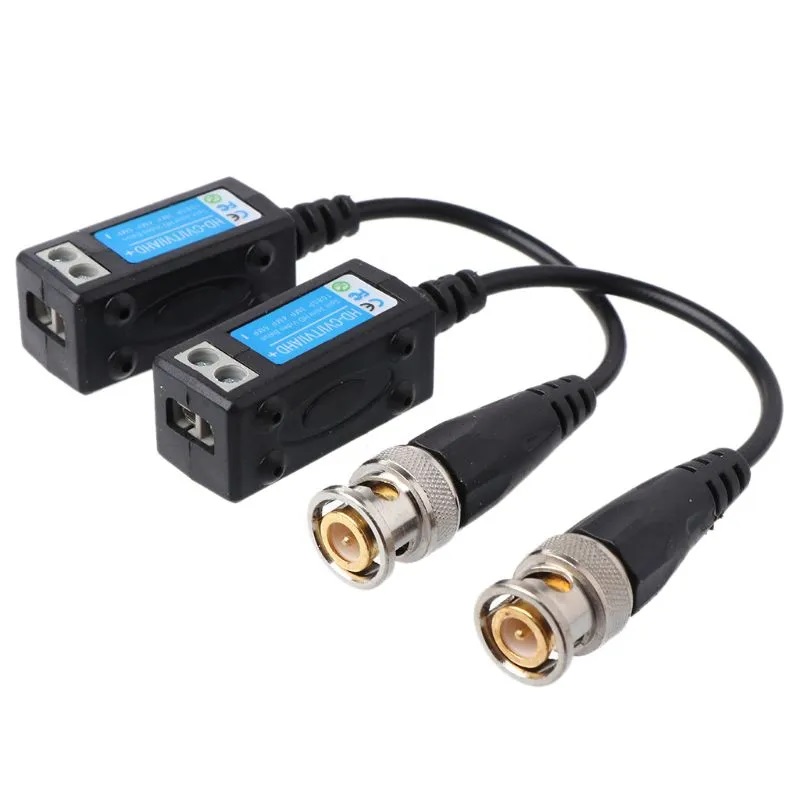

5MP CCTV Twisted Pair Passive Video Balun

Description

‘-Transmission signal: 1 channel
-Transmission distance: AHD/CVI:400m(max)
-TVI: 200m(max)
-Category Type: UTP CAT5/5E/6
-Coaxial video connector: BNC-M
-Twisted-pair video connector: Push-terminel
-Compatible Format: AHD / HDCVI /HDTVI/CVBS
-Resolution: 720P/960P/1080P/3MP/4MP/5MP
-Anti-interference: >60dB
-ESD: 1a contact discharge electricity level 3 / 1b air discharge electricity level 3 / Per: IEC61000-4-2
-Coaxial cable connector: 2KV(common-code)Per: IEC61000-4-5,
-UTP Cable Connector: 2KV(different-code),4KV(common-code)Per: IEC61000-4-5
-BNC male: 75 Ohms, UTP: 100 Ohms
Package Weight: 42g
Package Dimensions:9.5cm x 10cm
Package Includes:
1 x 5MP CCTV Twisted Pair Passive Video Balun
